1

Equipment Model

DH-600TB

2

Equipment Name

pouch and reel making machine

3

Equipment Drive

traction servo motor, main motor AC motor

4

Bag type

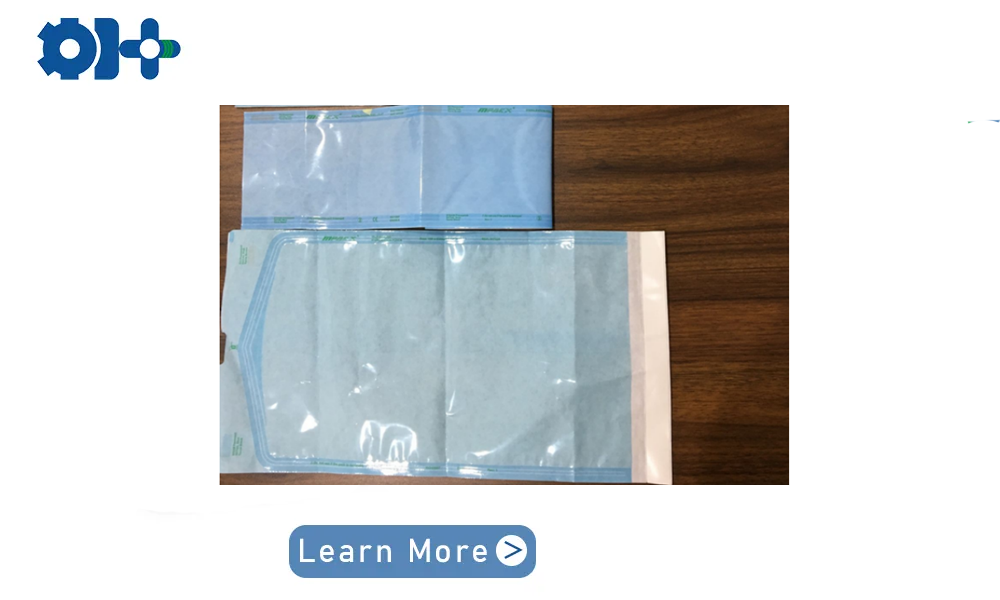

Medical paper/film pouch, reel, gusset reel, self-sealing pouch

5

Material size

Max width:600mm,Max diameter:600mm

6

Material typr

Paper、film、Tyvek

7

Pouch size

Max length:600mm, Max width:600mm

8

Reel size

Max diameter:≤400mm

9

Machine Speed

25-120pcs/min

≤15meter/min

10

Unwind speed

≤25m/min

11

Main motor

AC motor with Panasonic inverter

12

Main motor speed reducer

Japan planet-gear speed reducer

13

Traction motor

traction servo motor 1.5KW

14

Unwinding motor

Speed reducer

15

Unwinding Drive

Delta frequency inverter

16

Unwind Tension structure

Swing arm type

17

EPC

Made in china

18

Fix length photocell

Datalogic

19

Temperature control

Total 6 groups

20

Cross heater

1 group, length 620mm,width 620mm

21

Cross cooler

1 group, length 420mm,width 620mm

22

Punch

Round punch 1 set

23

Pneumatic

Taiwan Airtac，other brand made in china

24

Valve

Taiwan Airtac，other brand made in china

25

Wallboard Structure

Staggered form

26

Unwinding tension

Magnetic powder brake

27

Unwind shaft

Air shaft * 2

28

Control system

Japan Panasonic PLC

29

Rewinding motor

0.4KW AC motor with Panasonic inverter

30

Rewinding Tension structure

Swing arm type

31

Rewinding tension

Magnetic powder clutch

32

Rewinding air shaft

Air shaft * 2

29

Power

3 phase 380v 50HZ

30

Capacitance

22KW

31

Dimension

6600*1120*1680mm

32

Weight

Round 3100KG
