Machine Description
1. Bag making machine process
Material input - traction - edge sealing - output after slitting

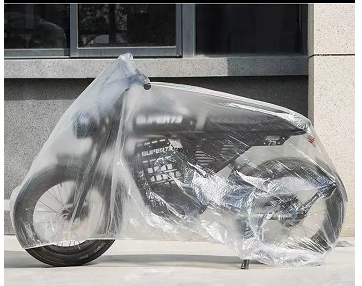

2. Sample Display
3.Equipment advantages：
1:The device adopts motion bus controller，Reduce signal interference during operation，Remote control
2：Adopting Xinjie servo motor control, the size can be adjusted freely
3：The equipment adopts a double-layer edge sealing device, which first uses ultrasonic edge sealing rubber bands, and then heats and seals the edges to make the finished product more firm and convenient to use
4：The cutter adopts imported material, which is more durable
5：Stable operation, energy saving and high efficiency, saving labor costs
Machine characteristics
1.Machine Technical Data
|
Machine type |
DH-MTT01 |
|
Production |
20-50PCS/MIN |
|
Voltage |
380V 50-60Hz |
|
Overall size |
L10500*W2200*H2200mm |
|
Machine weight |
2500KGS |
|
Power |
最大功率（开机时的功率）15kw 运行中功率 6kw |
|
Pressure |
0.6-0.8 mPa |
2.Material parameters
|
Material width |
300-1200mm |
|
Thickness |
高压材料2-8丝 低压材料1.5-8丝 |
|
Material type |
CPE LDPE HDPE |
|
Material roll diameter |
600mm |
3.Machine Specification
|
Name |
Remarks |
Picture |
|

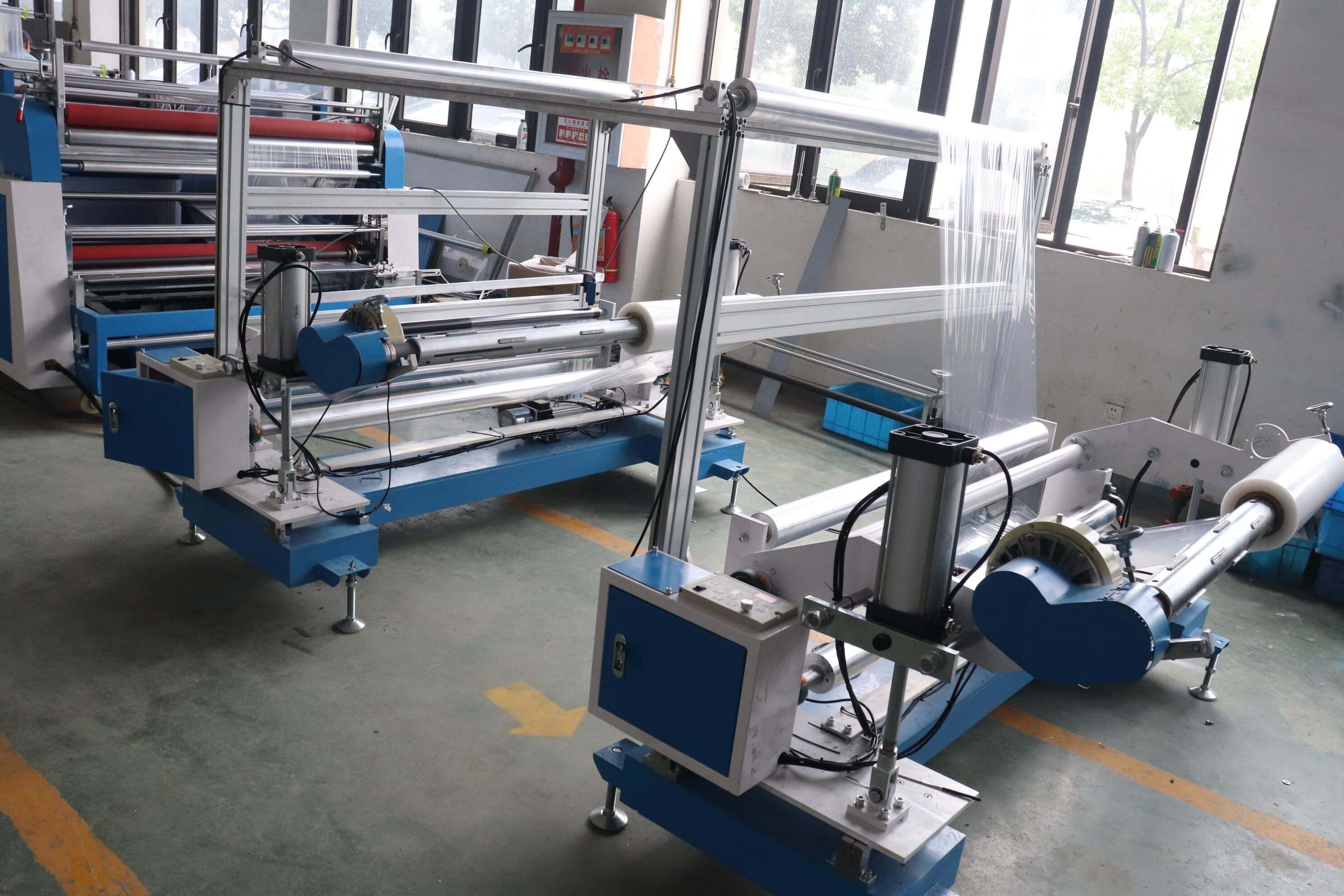

Feeding device |
Origin ：China |
|
|

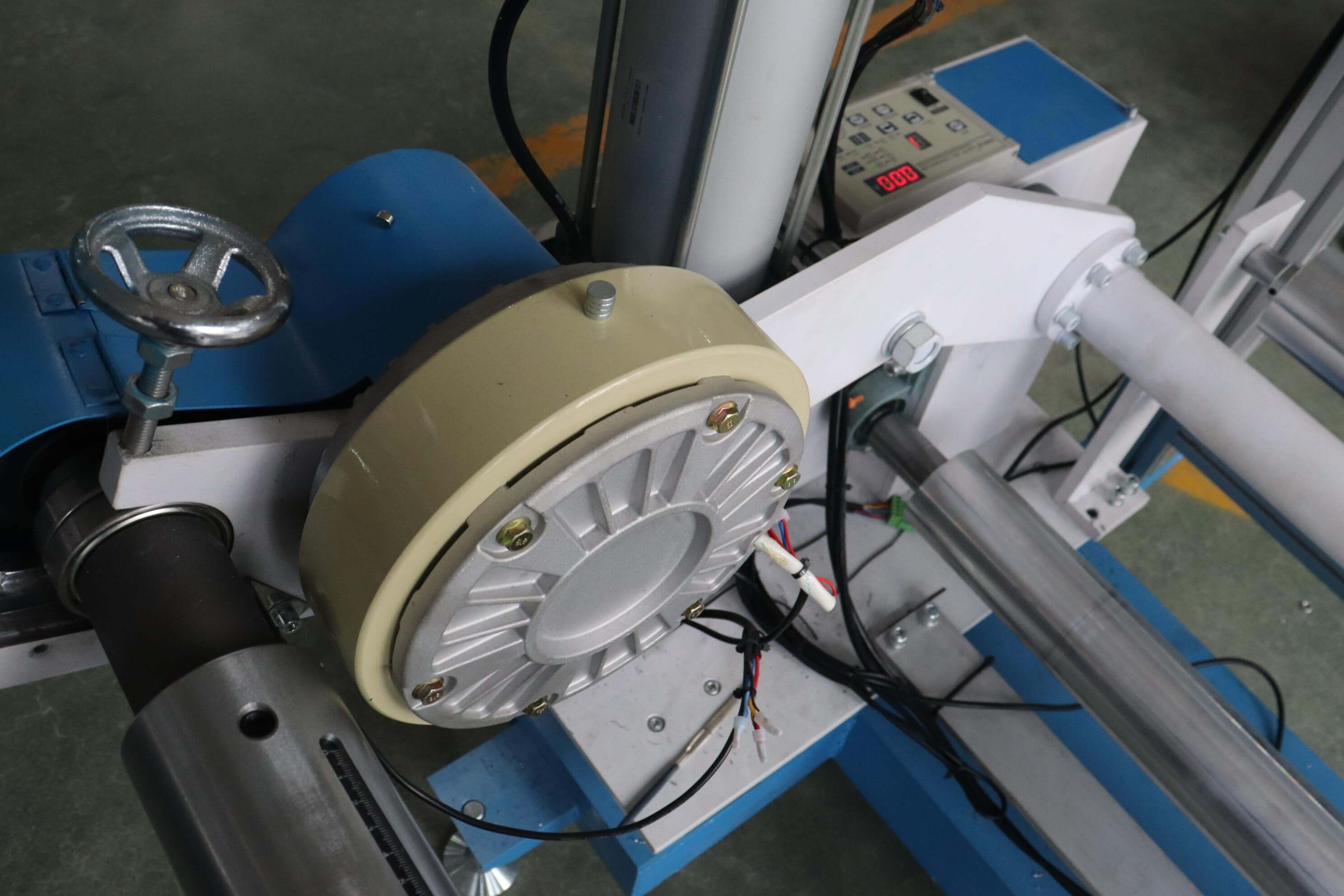

Magnetic powder tension controller |
Origin ：China |
|
|

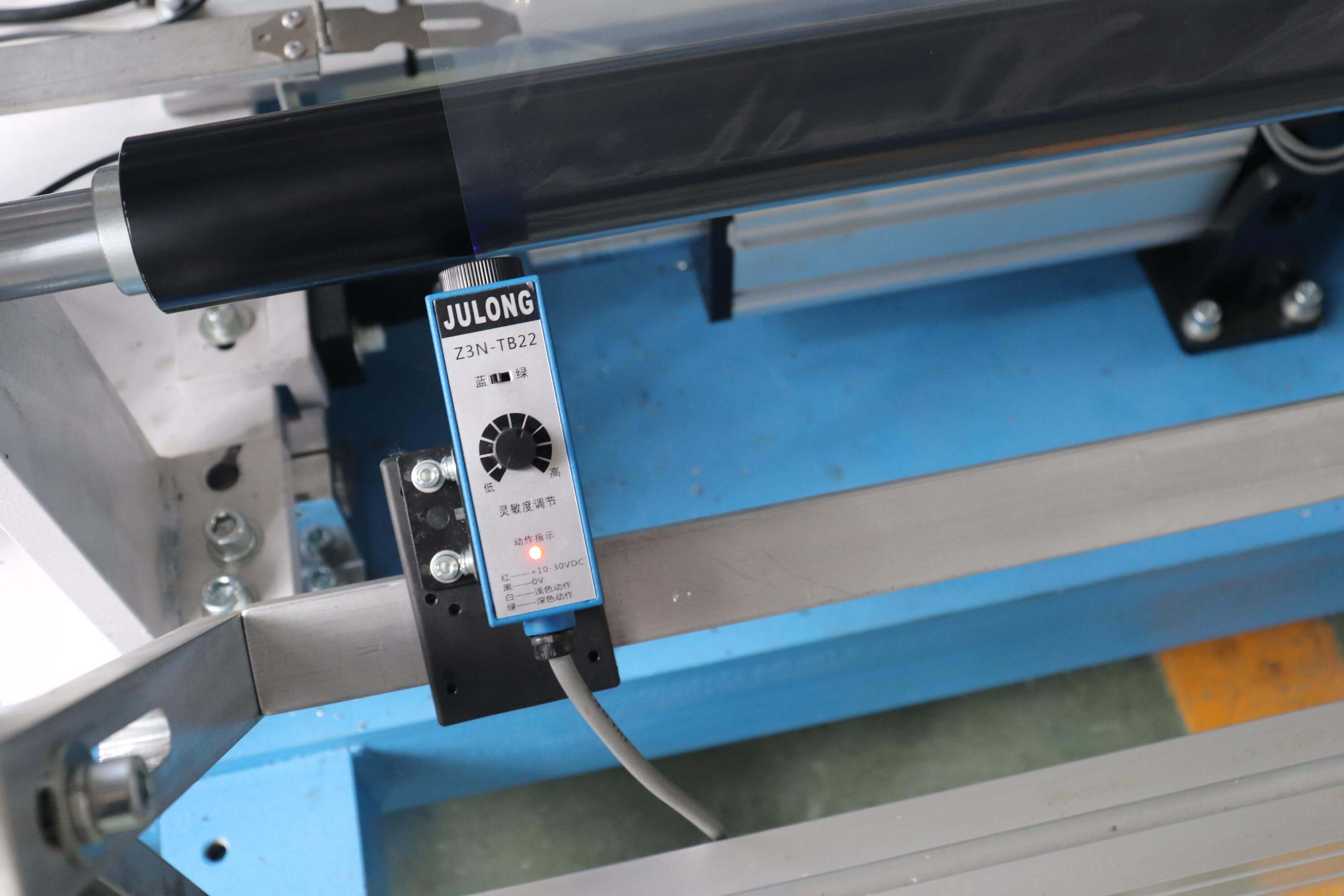

Correction Controller |
Origin ：China |
|
|

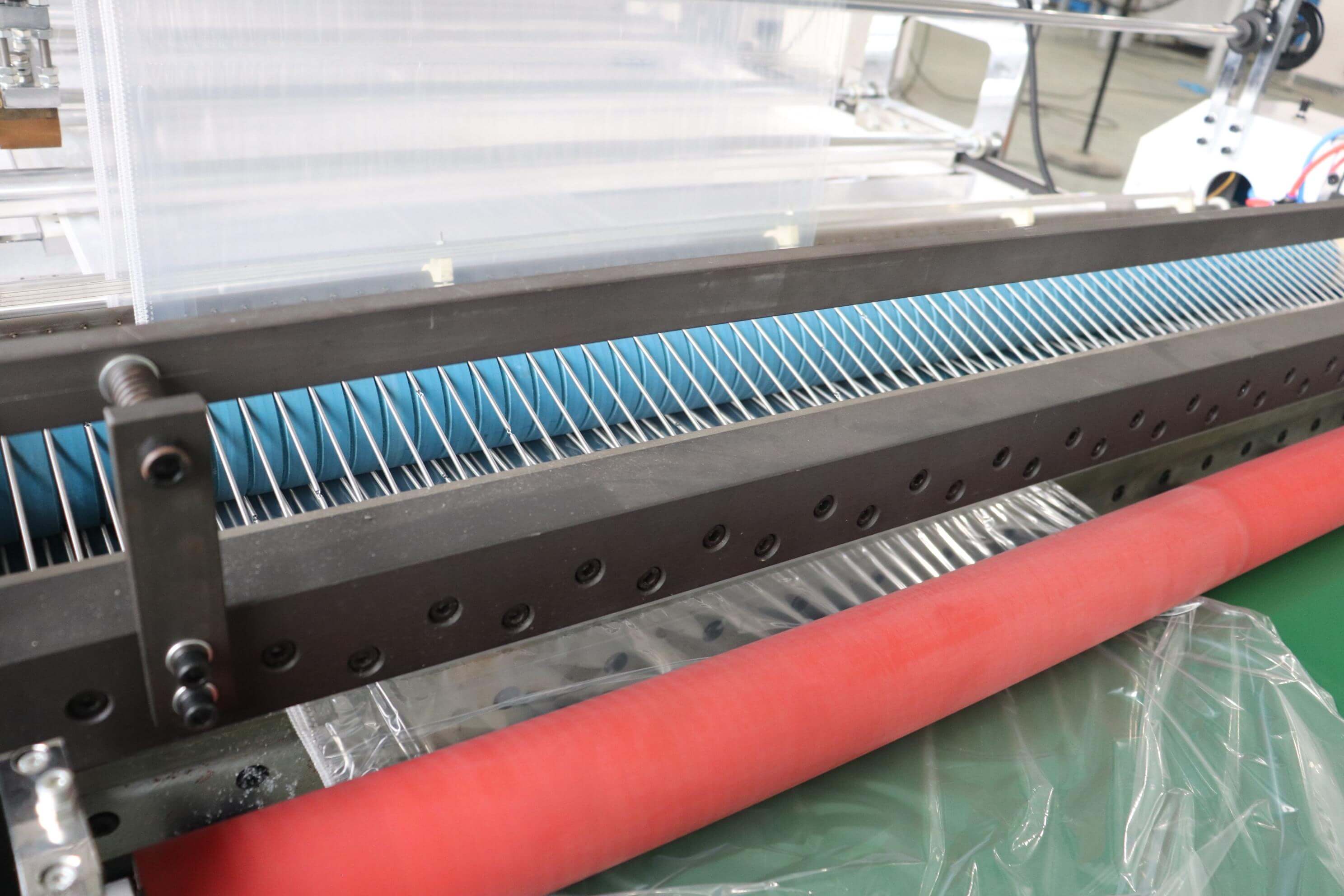

Edge sealing teeth |
Origin ：China |
|
|

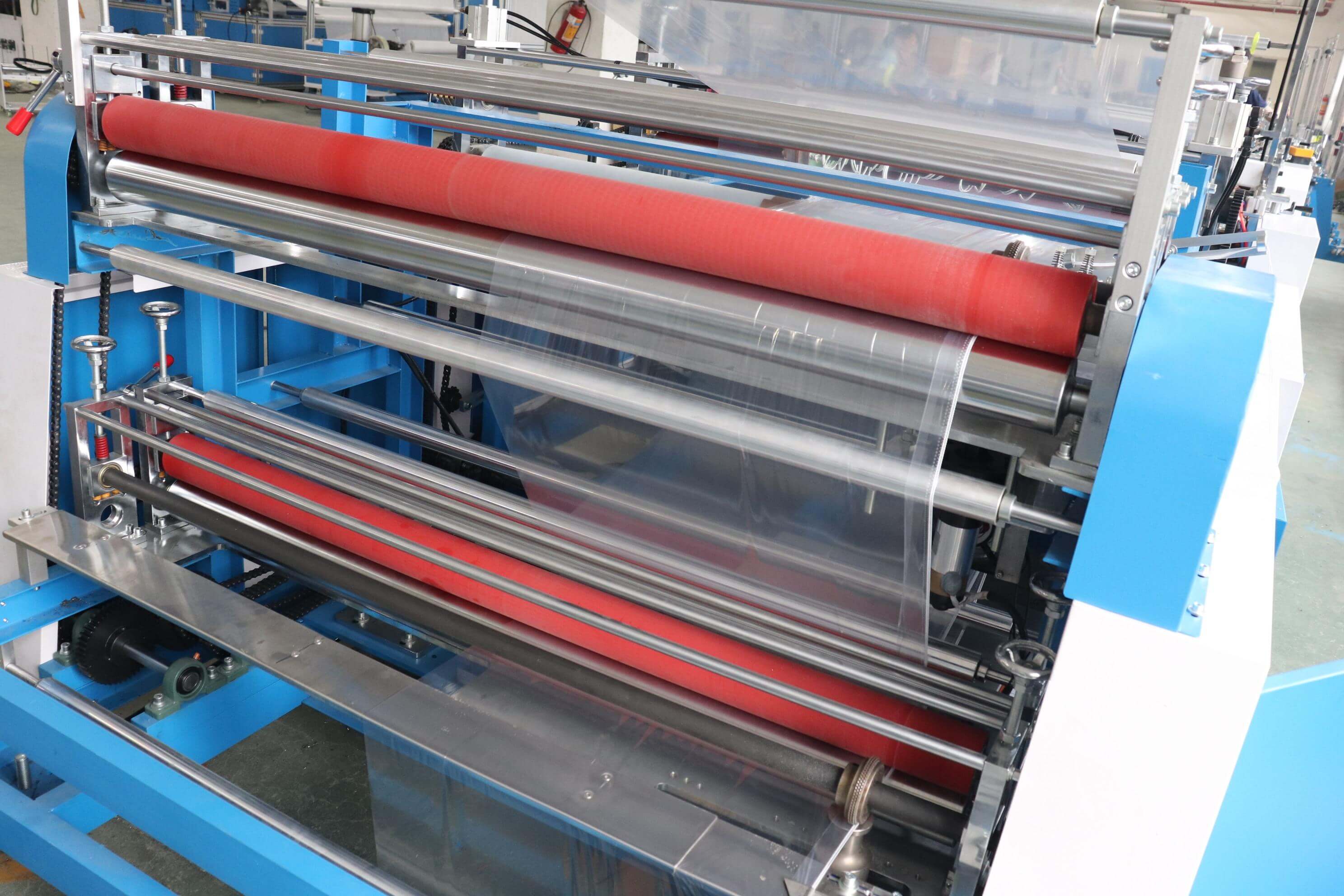

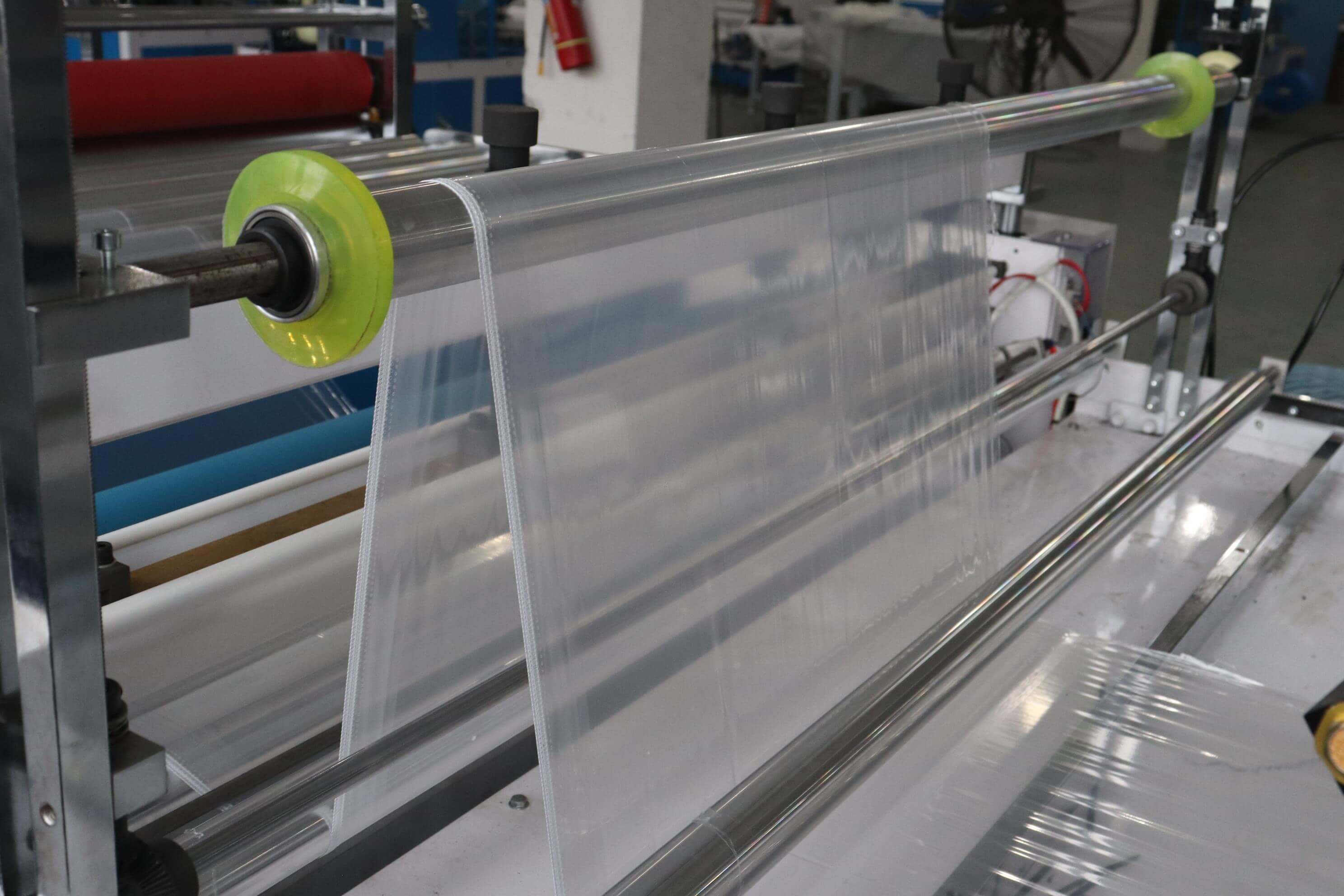

pull roll |
Origin ：China |
|
|

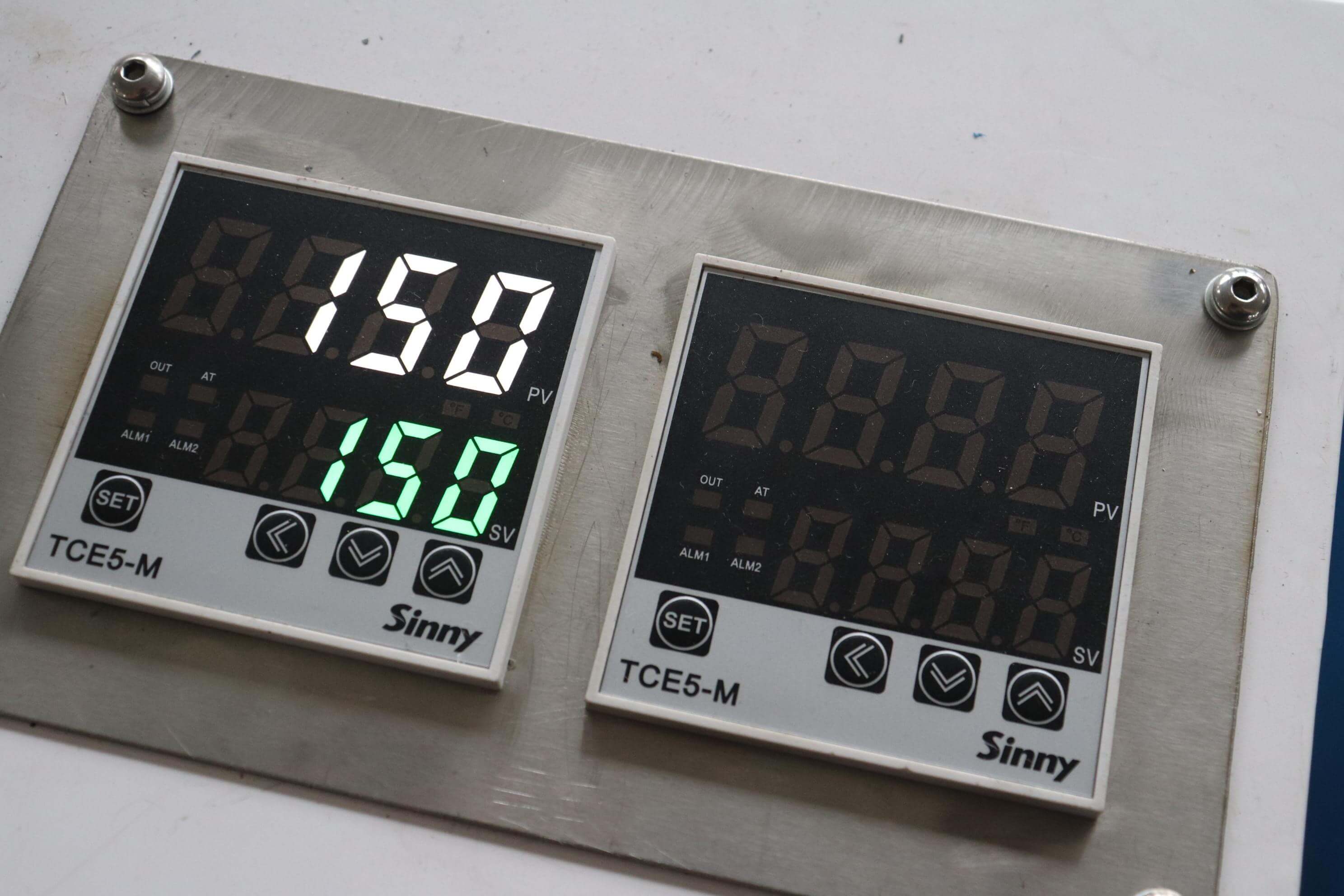

Temperature control meter |
Origin ：China |
|
|

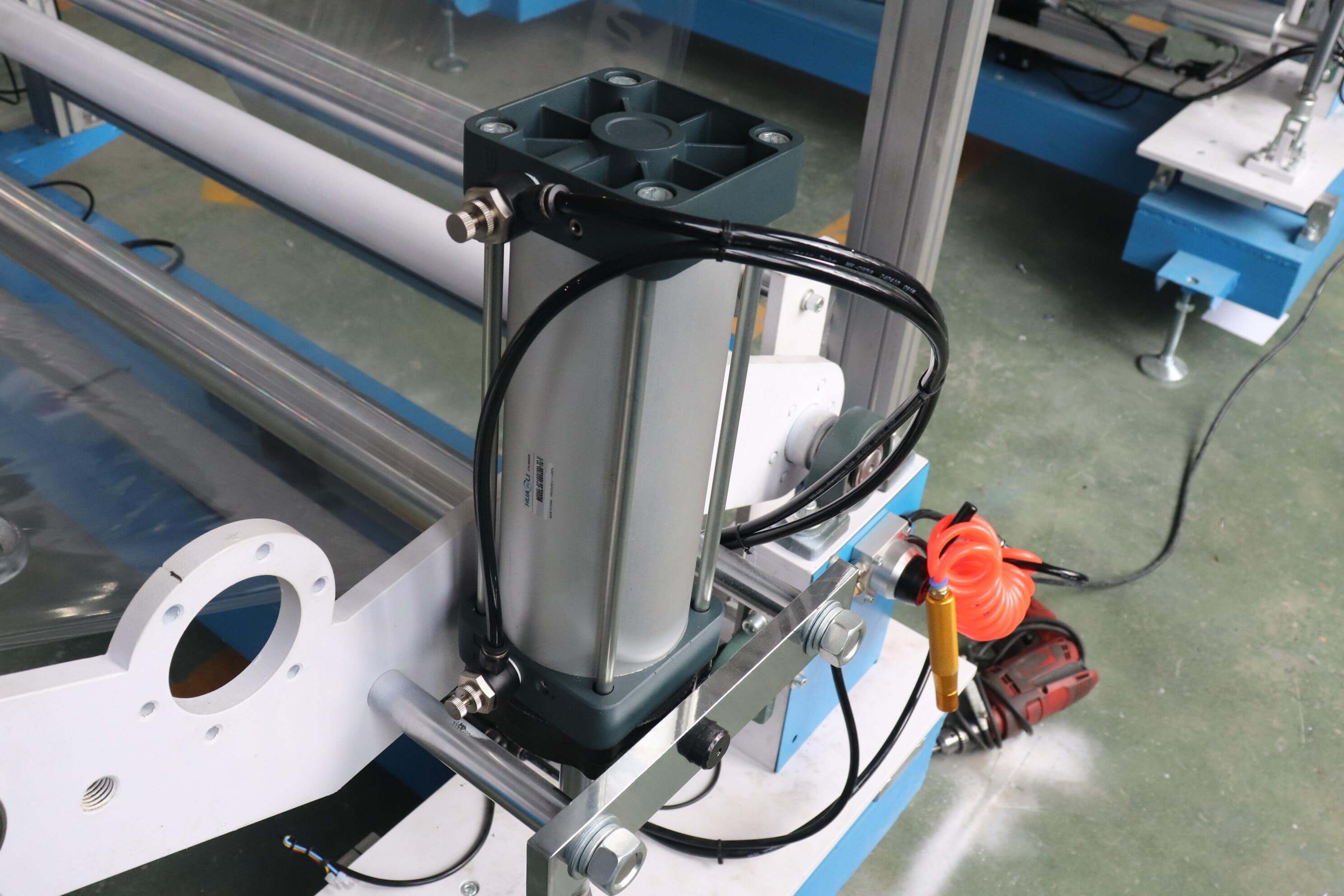

cylinder |
Origin ：China |
|
|

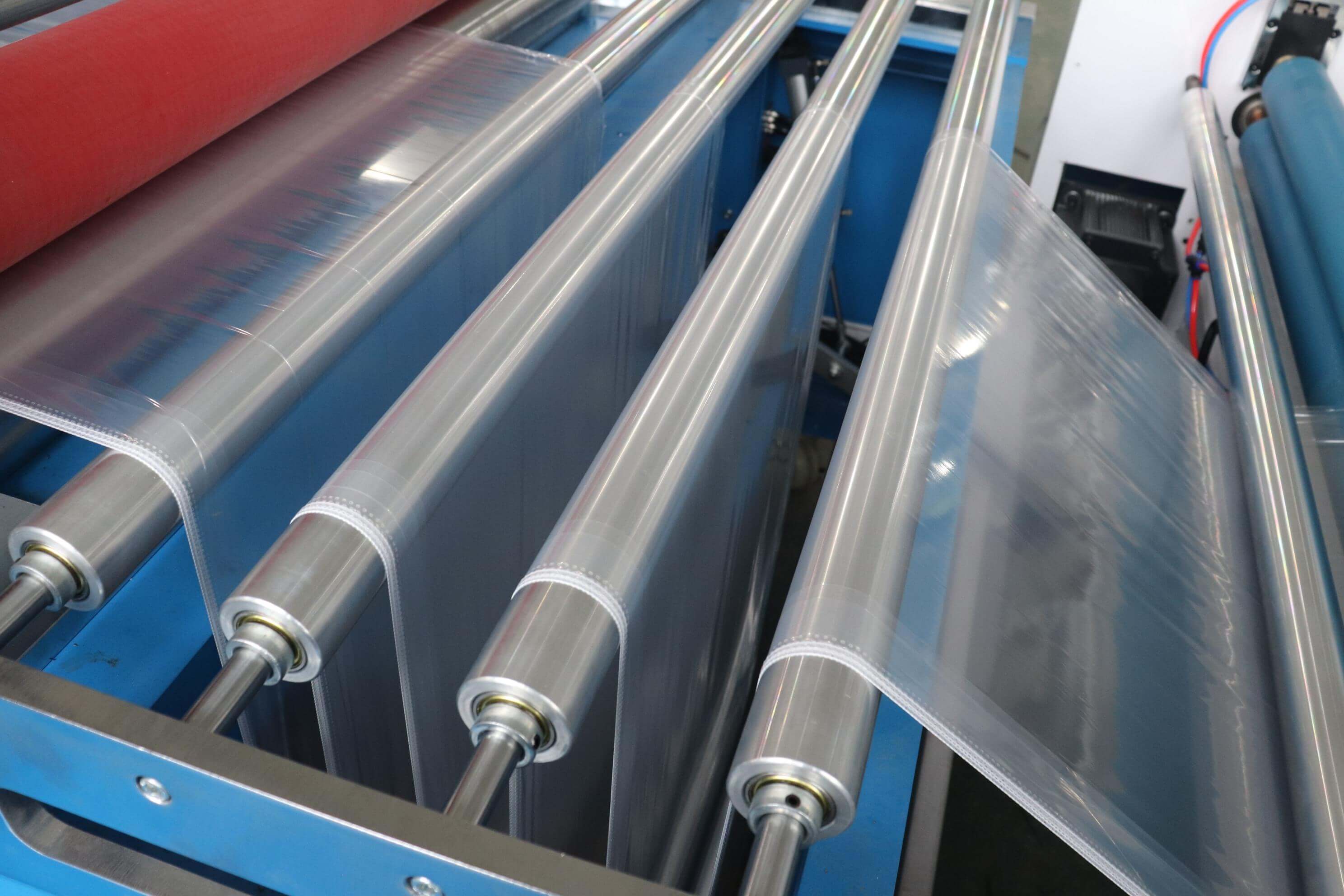

Material storage device |
Origin ：China |
|
|

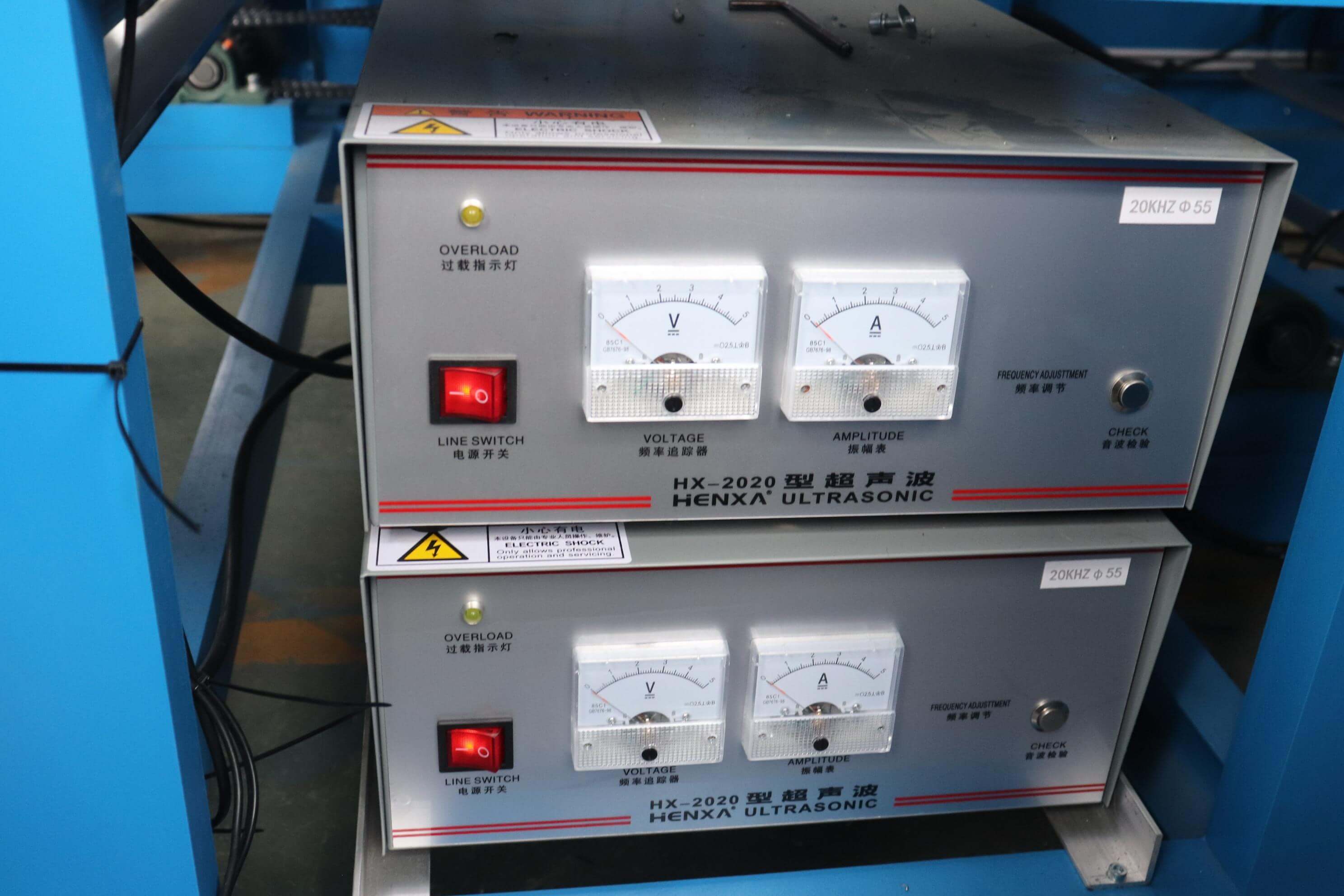

ultrasonic |
Origin ：China |
|
|

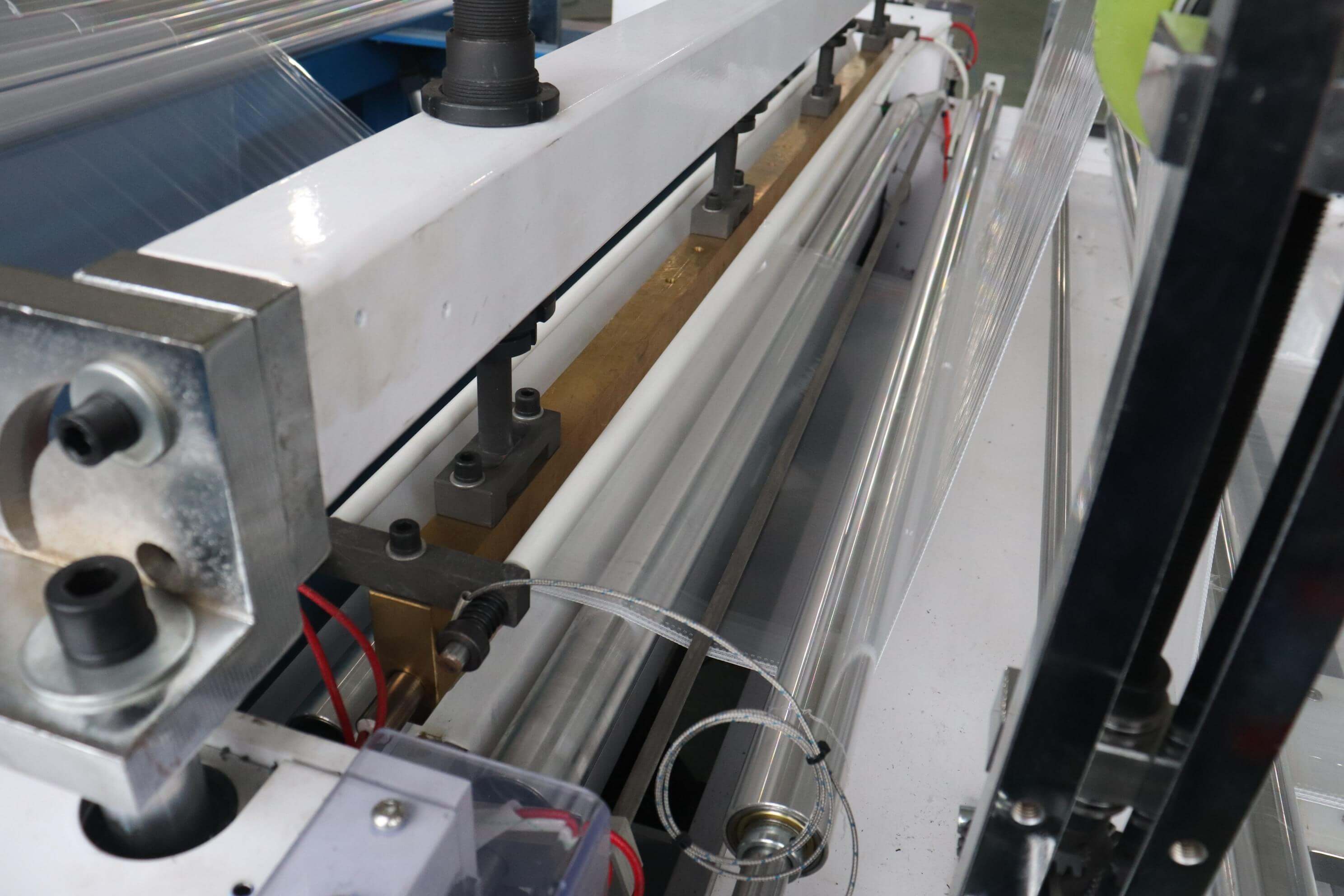

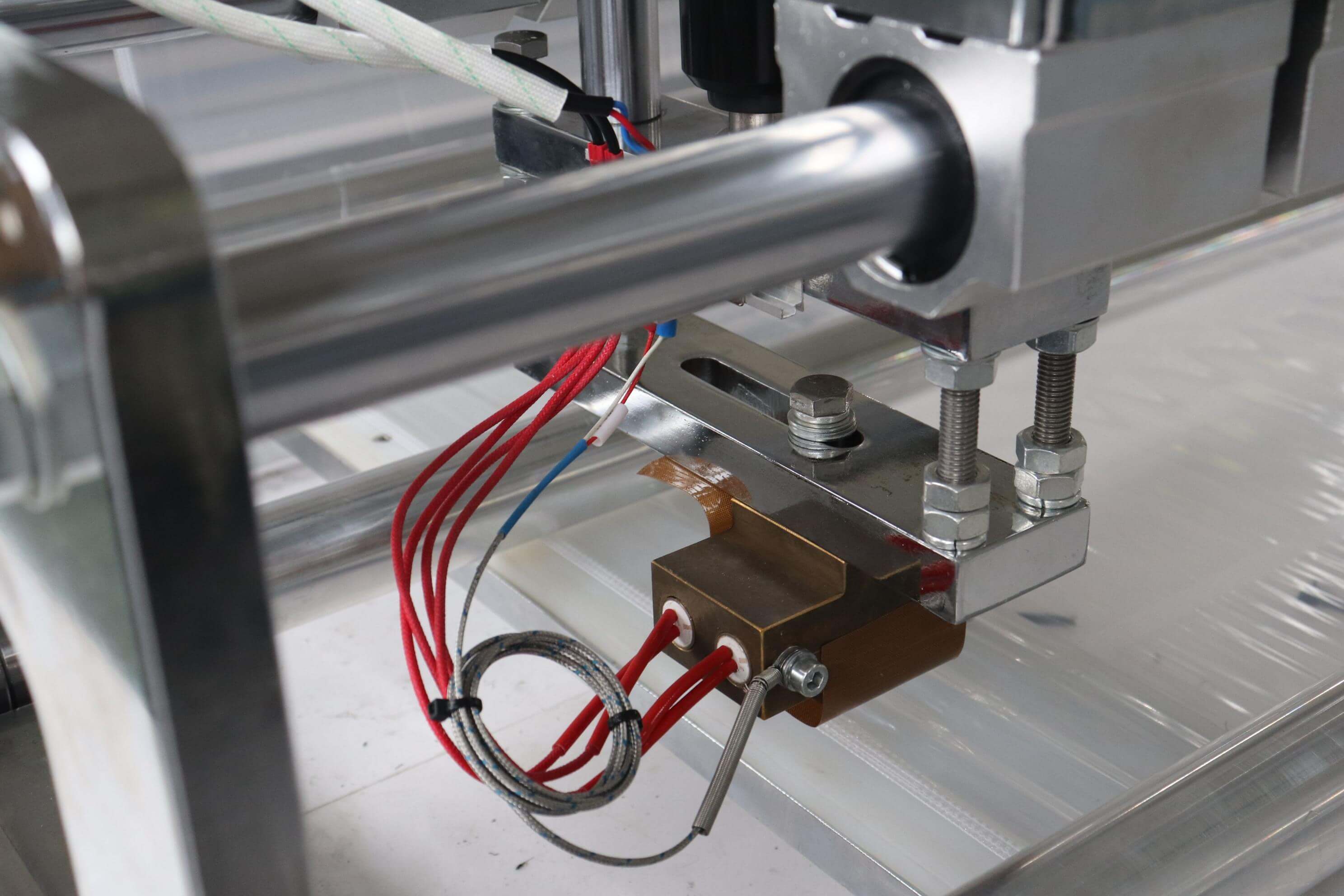

Copper knife edge sealing |
Origin ：China |
|
|
Copper welded teeth |
Origin ：China |
|
|
Elevated bridge |
Origin ：China |
|
|
Knife cutting device |
Origin ：China |
|
|

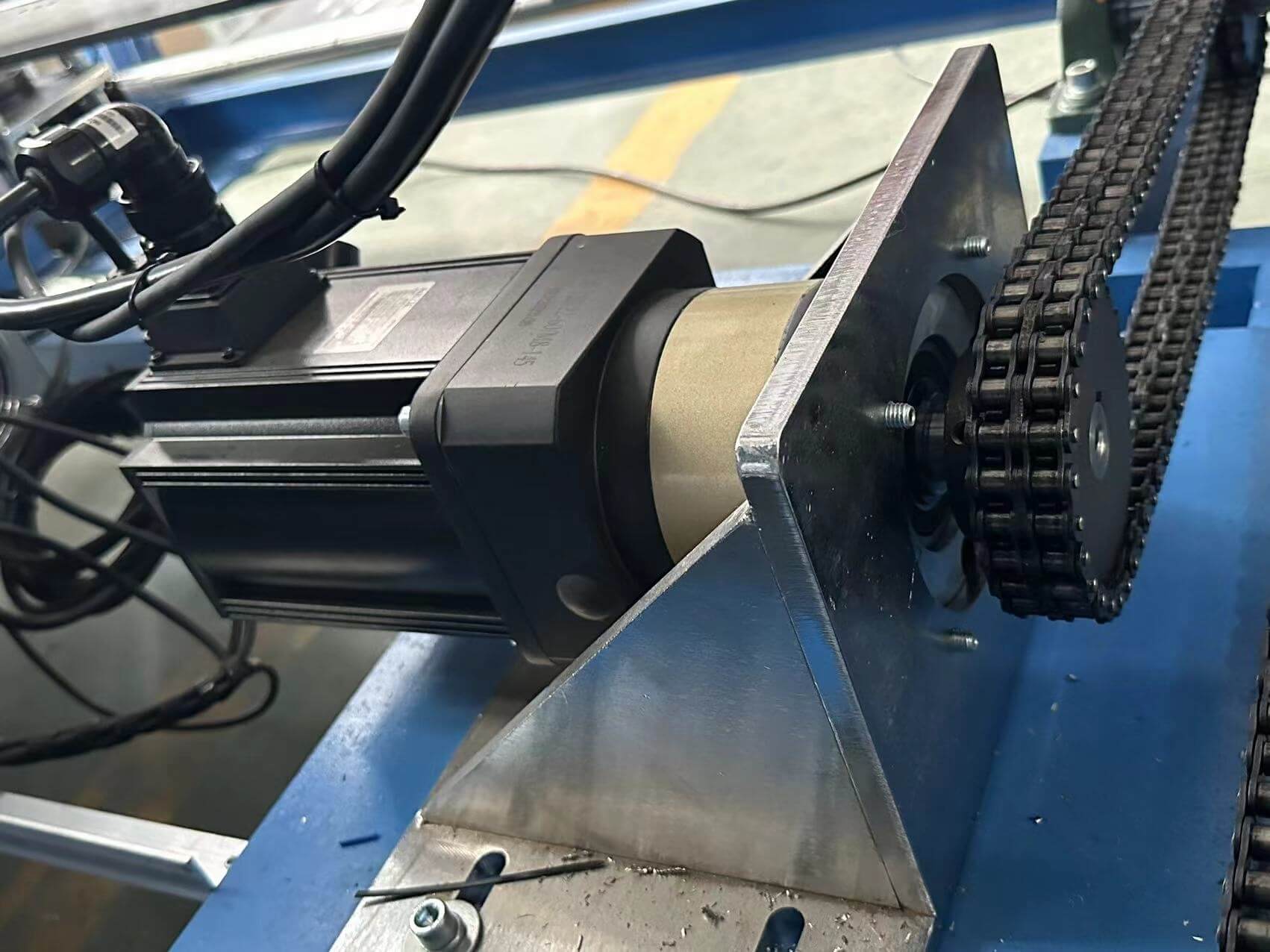

servo motor |
Origin ：China
|
|
|
Heating wheel |
Origin ：China |
|
|

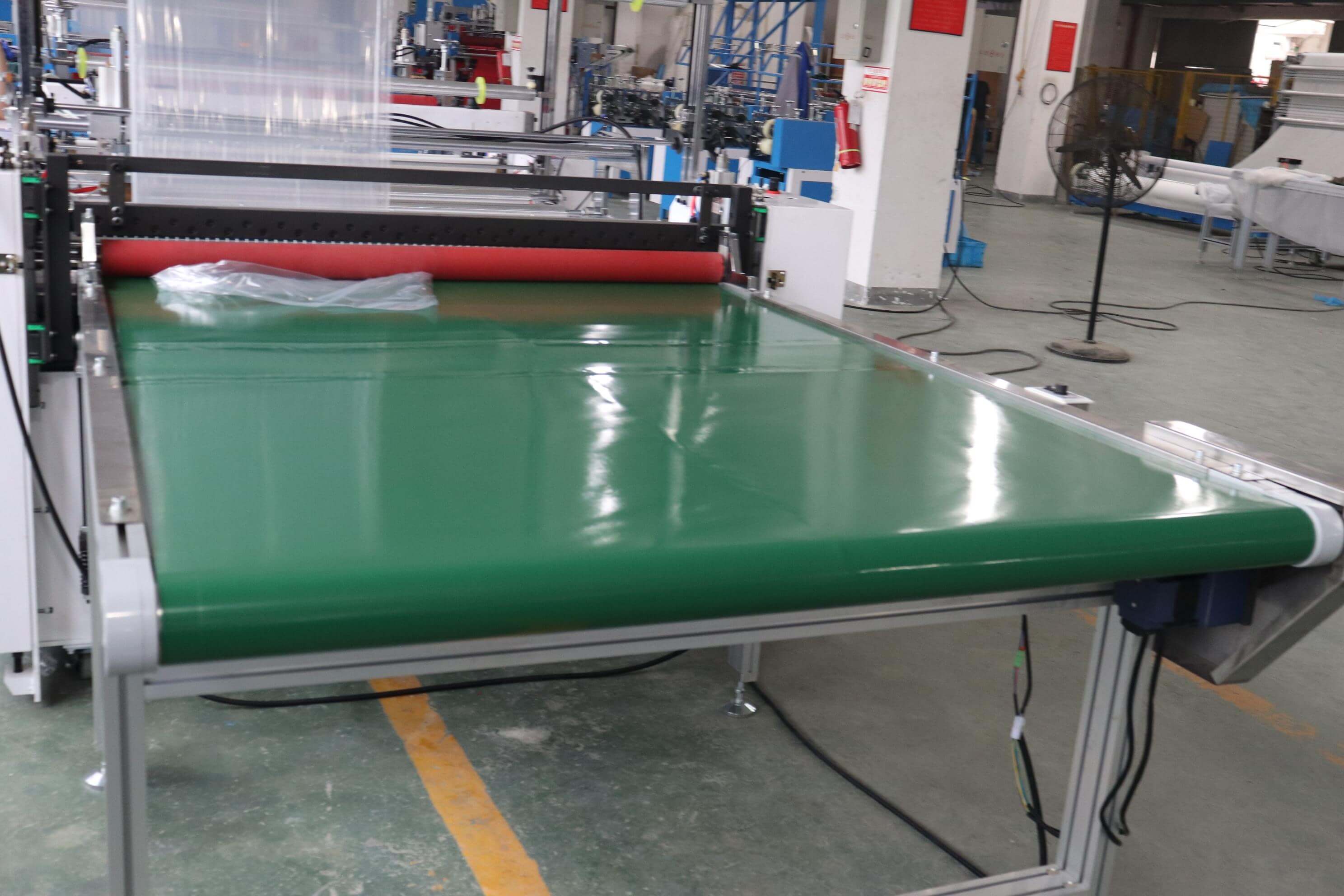

conveyor |
Origin ：China |
|
