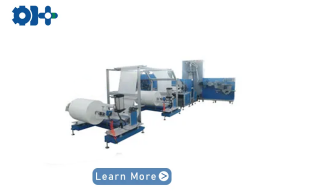

Automatic Non woven quilt cover folding machine

Share This Product:

SPECIFICATION

Machine Description

It is a specialized automatic machinery specializing in the production of disposable non-woven cloth quilt cover, we are equipped with PLC and touch screen, easy to operate. Suitable for aircraft, hospitals, hotels, automatic entry from the material to the finished product.

1.Schematic diagram

2.production program

Feed-wrapping edge-vertical welding-horizontal welding-cutting belt-fold-fold width-fold length-cut-conveying

Machine character

1. Machine technical data

Machine type	DH-C
production rate	10-20M/MIN
voltage	380V 50Hz
Overall size	L 9600 * W5500 * H27650 mm
power	18KW
machine weight	3800KGS

2. Product photos

Material report:

No.	Material	Diameter(mm)	Tube Diameter(mm)	Width(mm)	Thickness(mm)	Weight(kg)
1.	Non-woven	500-1000	Φ76.2	1600-2200	30-40gsm	50-80

Main machine structure description:

feeder unit	1 set
Elastic belt welding device	1 set
Angle welding device	1 set
Vertical folding device	1 set
Cutting device	1 set
conveyor	1 set

Main component part list:

name	take down	quantity	origin	photograph
feeding device	The pneumatic axis	2 sets	China
Magnetic powder tension control		2 sets	China
Tension controller and correction deviation device		` set	China
ultrasonic		2 sets	China
welder		2 sets	This factory
Cut belt device		` set	This factory
electric relay		4 sets	China
touch screen	Xinjie	` set	China
servomotor	Xinjie	16 sets
servo drivers	Xinjie	16 sets	China
plc	Xinjie	1 set	China
Vertical folding device
Horizontal folding device
Triangle to fold		1set	This factory
conveyor			This factory

No.	Item Name	Quantity	Photo
1	Screwdriver	2pcs
2	hexagonal wrench	1set
3	adjustable wrench	1set
4	Screws and nuts	Bulky
5	Oil bottle	1pc
6	Tool box	1pc
