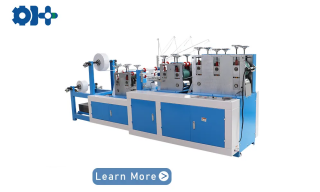

Non woven toilet seat cover making machine with package

Share This Product:

INFORMATION

Ⅰ.Machine Description

The disposable Non woven toilet seat cover making machine with package system is a full automation machine from raw materials feeding into the finished packaged product, more easily operation and save labor cost. It adopts servo motor which is more higher motion precision and high speed performance.

Ⅱ.Schematic diagram

Machine process:

Non woven fabric input - traction - ultrasonic edge banding - output after slitting - packaging

III. Machine characteristics

1. Toilet cover making Machine Technical Data

Machine type	DH-MTT01
Production Speed	80-100PCS/MIN
Voltage	380V 50Hz
Overall size	L4400W1000H1750mm
Power	8KW
Machine weight	1900KGS

Packaging machine parameters

Machine type	DH-MTT01
Overall size	L2400W900H1500mm
Power	3KW
Machine weight	400KGS

2. Features

1). Machine flexible and product disposable.

2). Delivery is the finished product.

3). Full automation and Easy to install.

4). Unique design and high speed .

3. Detail photo

4. Material Report

Material

Diameter (mm)

Tube Diameter
(mm)

Width (mm)

Thickness
(mm)

Weight (Kg)

Non woven

500-600

Φ76.2

180

18-30g

10-30

ELASTIC

5. Main machine structure description

Material feeding unit	4sets
Traction device	3sets
Embossing wheel device	4sets
Cutter device	1set

6. Main configuration

Name	Remark	Quantity	Place	Picture
Feeding device		4sets	China
Traction roll device		3pcs	China
Ultrasonic	18k	3pcs	China
Embossing wheel		4sets	China
Cutter device		1set	China
Servo motor		3sets	China
Conveyor		1set	China
electrical equipment		1set	China
Control panel		1pc	China
Magnetic particle controller		1pc	China
Folding device		1pc	China

Package parts configuration

Name	Remark	Quantity	Place	Picture
Feeding device		1set	China
Conveyor		1set	China
Chasing sensor		1pc	China
Controller		1pc	China
Packaging device		1pc	China
Circuit board		1pc	China
Servo motor		2pcs	China

7.Spare Parts List

No.	Item Name	Quantity	Photo
1	Screwdriver	2pcs
2	hexagonal wrench	1set
3	adjustable wrench	1set
4	Screws and nuts	Bulky
5	Oil bottle	1pc
6	Tool box	1pc
